FeaturePlaneAbstract Class Reference

#include <FeaturePlaneAbstract.h>

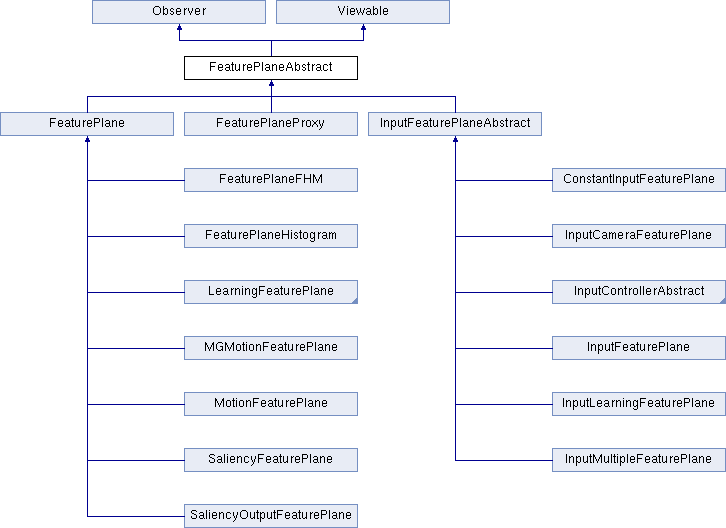

Inheritance diagram for FeaturePlaneAbstract:

List of all members.

Public Member Functions
	~FeaturePlaneAbstract ()
void	run ()
	Entry point for thread pool invocation.
void	notify ()
void	notify (bool functional)
virtual void	updateNN (Observer *sourceFP, bool functional)
void	attachProxy (NodeProxy *np)
void	addToHistory (OutputImage *tmpElement, set< OutputImage * > *tmpOutputHistory)
void	addToHistory (OutputImage *tmpElement, set< OutputImage * > *tmpOutputHistory, OutputImage **currOutput, QMutex *currOutputMutex)
void	emptyHistory (set< OutputImage * > *tmpOutputHistory)
void	StartThread ()
void	PauseThread ()
void	TerminateThread ()
void	setName (QString *tmpName)
double	getDisplayScale ()
double	getDisplayAngle ()
double	getDisplayDelta ()
QString *	getName ()
void	setTheta (float t)
void	setLayerIndex (int l)
int	getLayerIndex ()
Layer *	getLayer (int layerIndex)
int	getSpeeds ()
int	getSpeed ()
int	getAngles ()
int	getAngle ()
void	setFeatureBias (float tmpBias)
float	getFeatureBias ()
void	setSpatialBias (Matrix *tmpSpatialBias)
void	setSpatialTaskBias (OutputImage *tmpSpatialBias)
int	getXSize ()
int	getYSize ()
bool	isWTA ()
virtual FeaturePlaneInput *	addFilter (Filter *f, FeaturePlaneAbstract *fp, int type, int fpOutputIndex, bool wta)
virtual void	editFeaturePlaneInput (FeaturePlaneInput *oldElement, FeaturePlaneInput *newElement)
virtual void	removeFeaturePlaneInput (FeaturePlaneInput *theElement)
virtual void	removeFeaturePlaneInput (FeaturePlaneAbstract *theElement)
virtual void	removeFeaturePlaneInputs ()
virtual OutputImage *	getCurrentOutput (int index)
OutputImage *	getGatingControlOutput (int index)
int	getGatingControlOutputCount ()
virtual void	inhibitReturn ()
void	initSelectiveTuning ()
virtual OutputImage *	getCurrentOutput ()
OutputImage *	getImage ()
Matrix *	getMap ()
void	releaseMap ()
virtual PlaneInputs *	getRegularInputList ()
virtual PlaneInputs *	getMaskingInputList ()
virtual PlaneInputs *	getNonFourierInputList ()
virtual PlaneInputs *	getGatingControlInputList ()
virtual int	getGatingControlInputListSize ()
virtual float	getMaxActivation ()
virtual bool	isInputFP ()
virtual Matrix *	getGatingControl ()
virtual void	releaseGatingControl ()
void	setParameters (paramMap params)
void	XMLSerialize (int tabs, QTextStream *buf)
int	getID ()
void	setNode (NodeAbstract *n)
void	setThreshold (float t)
void	setThresholdPercent (float t)
void	setThresholdBinarize (float t)
void	setFunction (pt2Function theFunction)
virtual bool	moveHead (int deltaX, int deltaY, bool notify=true)
virtual void	processTargetPlane ()
virtual OutputImage *	getHeadImage ()
virtual QImage *	getVirtualImage (bool showRect)
void	selectWinner (int selectX, int selectY)
Static Public Member Functions
static int	getType (const QString name)
static QString	getType (int value)
static bool	CompareLayer (const FeaturePlaneAbstract *d1, const FeaturePlaneAbstract *d2)
Public Attributes
int	gatingControlInputCount
Matrix *	iorMap
int	iterations
int	fpType
NotifyStrategyAbstract *	theNotifyStrategy
Neuron *	theNeuronStrategy
FPDesignerInfo	designerInfo
UI_FeaturePlane *	fpViewerWindow
	FP output viewer window.
UI_NeuronTimeCourse *	neuronTimeCourseWindow
	Neuron Time Course window.
Static Public Attributes
static QWaitCondition *	workingThreadsCond
static QMutex	workingThreadsMutex
static int	currentLayer = 0
static int	workingThreads = 0
static int	totalWorkingThreads = 0
Protected Member Functions
	FeaturePlaneAbstract ()
	FeaturePlaneAbstract (Network *net, int l, QString *n, int w, int h, int angles, int speeds, int alpha, int speed, bool isWTA, bool visible, NotifyStrategyAbstract *notify, Neuron *neuron=NULL)
void	init ()
void	createGatingControl ()
void	applyGatingControl ()
void	_XMLSerialize (int &tabs, QTextStream *buf, PlaneInputs *tmpList, int type)
Protected Attributes
Network *	nn
int	layerIndex
OutputImage *	currentOutput
set< OutputImage * >	outputHistory
QMutex	currentOutputMutex
OutputImage **	workOutputList
OutputImage **	currentOutputList
OutputImage **	currentGatingControlOutputList
int	gatingControlOutputCount
QMutex	currentOutputListMutex
QMutex	gatingControlOutputListMutex
set< OutputImage * > **	outputHistoryList
set< OutputImage * > **	gatingControlHistoryList
OutputImage *	workOutput
QMutex	gcMutex
PlaneInputs	gatingControlInputList
OutputImage *	theGatingControl
int	speeds
int	angles
int	speed
int	alpha
int	width
int	height
int	outputs
int	inputs
bool	is_WTA
float	theta
float	threshold
float	threshold_percent
float	threshold_binarize
Matrix *	spatialBias
float	featureBias
int	fpID
NodeAbstract *	_parentNode
pt2Function	functionCall
paramMap	initParams
QMutex	observerProxyMutex
list< NodeProxy * >	_observersProxyList
Friends
class	FeaturePlaneFactory
class	ClientSocket
class	UI_FeaturePlaneProp
class	UI_FilterProp
class	Network
class	UI_DesignerPropDisplay

---

Constructor & Destructor Documentation

FeaturePlaneAbstract::~FeaturePlaneAbstract

(

)

destructor.

FeaturePlaneAbstract::FeaturePlaneAbstract

(

)

[protected]

Default constructor

FeaturePlaneAbstract::FeaturePlaneAbstract	(	Network *	net,
		int	l,
		QString *	n,
		int	w,
		int	h,
		int	angles,
		int	speeds,
		int	alpha,
		int	speed,
		bool	isWTA,
		bool	visible,
		NotifyStrategyAbstract *	notify,
		Neuron *	neuron = NULL
	)		[protected]

Constructor

Parameters:

net	- network, this FP will be added to the end of the list of feature planes
l	- layer index
name	- name of the feature plane
w	- width
h	- height
angles	- number of discrete angles (e.g. speeds, orientations)
speeds	- number of speeds (e.g. speed bands, scale bands)
alpha	- alpha
speed	- speed of this fp
isWTA	- participates in Selective Tuning
visible	- should the FP be presented in the UI
notify	- notification strategy (deprecated, on the way out)
neuron	- neuron strategy (what is the output nonlinearity, or the ODE that defines response)

---

Member Function Documentation

void FeaturePlaneAbstract::_XMLSerialize	(	int &	tabs,
		QTextStream *	buf,
		PlaneInputs *	tmpList,
		int	type
	)		[protected]

virtual FeaturePlaneInput* FeaturePlaneAbstract::addFilter	(	Filter *	f,
		FeaturePlaneAbstract *	fp,
		int	type,
		int	fpOutputIndex,
		bool	wta
	)		[inline, virtual]

Add an input filter/feature plane pair. In general, do nothing, redefined in FeaturePlane

Reimplemented in FeaturePlane, LearningFeaturePlane, InputFeaturePlaneAbstract, STSOMFeaturePlane, CTSOMFeaturePlane, and FeaturePlaneProxy.

void FeaturePlaneAbstract::addToHistory	(	OutputImage *	tmpElement,
		set< OutputImage * > *	tmpOutputHistory
	)

Add output to history.

void FeaturePlaneAbstract::addToHistory	(	OutputImage *	tmpElement,
		set< OutputImage * > *	tmpOutputHistory,
		OutputImage **	currOutput,
		QMutex *	currOutputMutex
	)

Add output to history using a specific mutexes -> only invoked when having more than one current output.

void FeaturePlaneAbstract::applyGatingControl

(

)

[protected]

Reimplemented in FeaturePlane, BPLearningFeaturePlane, and MotionFeaturePlane.

void FeaturePlaneAbstract::attachProxy

(

NodeProxy *

np

)

Attach an observer located on a different node.

static bool FeaturePlaneAbstract::CompareLayer	(	const FeaturePlaneAbstract *	d1,
		const FeaturePlaneAbstract *	d2
	)		[inline, static]

void FeaturePlaneAbstract::createGatingControl

(

)

[protected]

virtual void FeaturePlaneAbstract::editFeaturePlaneInput	(	FeaturePlaneInput *	oldElement,
		FeaturePlaneInput *	newElement
	)		[inline, virtual]

Reimplemented in FeaturePlane.

void FeaturePlaneAbstract::emptyHistory

(

set< OutputImage * > *

tmpOutputHistory

)

Clean output history.

int FeaturePlaneAbstract::getAngle

(

)

[inline]

int FeaturePlaneAbstract::getAngles

(

)

[inline]

Reimplemented in MGMotionFeaturePlane.

OutputImage * FeaturePlaneAbstract::getCurrentOutput

(

int

index

)

[virtual]

Returns the feature plane's latest output, with an index for multi-output FPs. Overloaded in InputControllerAbstract and InputFeaturePlane where we can get RGB independently.

Reimplemented in FeaturePlane, InputMultipleFeaturePlane, and InputLearningFeaturePlane.

OutputImage * FeaturePlaneAbstract::getCurrentOutput

(

)

[virtual]

Returns the feature plane's latest output.

Reimplemented in InputMultipleFeaturePlane, and InputLearningFeaturePlane.

double FeaturePlaneAbstract::getDisplayAngle

(

)

Get the display angle - see void setName(QString* tmpName);

double FeaturePlaneAbstract::getDisplayDelta

(

)

Get the display delta - see void setName(QString* tmpName);

double FeaturePlaneAbstract::getDisplayScale

(

)

Get the display scale - see void setName(QString* tmpName);

float FeaturePlaneAbstract::getFeatureBias

(

)

Return Feature bias. One value for the whole feature map (0-1, default 1)

Matrix * FeaturePlaneAbstract::getGatingControl

(

)

[virtual]

Return the internal gating control for display purposes. Locks gcMutex

virtual PlaneInputs* FeaturePlaneAbstract::getGatingControlInputList

(

)

[inline, virtual]

virtual int FeaturePlaneAbstract::getGatingControlInputListSize

(

)

[inline, virtual]

OutputImage * FeaturePlaneAbstract::getGatingControlOutput

(

int

index

)

int FeaturePlaneAbstract::getGatingControlOutputCount

(

)

virtual OutputImage* FeaturePlaneAbstract::getHeadImage

(

)

[inline, virtual]

Reimplemented in InputSocketFeaturePlane, and InputVirtualFeaturePlane.

int FeaturePlaneAbstract::getID

(

)

Returns the index in the feature plane list

OutputImage* FeaturePlaneAbstract::getImage

(

)

[inline, virtual]

Viewable function

Reimplemented from Viewable.

Layer * FeaturePlaneAbstract::getLayer

(

int

layerIndex

)

Get the layer to which this fp belongs

int FeaturePlaneAbstract::getLayerIndex

(

)

Get the index of the layer to which this fp belongs

Matrix* FeaturePlaneAbstract::getMap

(

)

[inline, virtual]

Viewable function

Reimplemented from Viewable.

virtual PlaneInputs* FeaturePlaneAbstract::getMaskingInputList

(

)

[inline, virtual]

Reimplemented in FeaturePlane.

virtual float FeaturePlaneAbstract::getMaxActivation

(

)

[inline, virtual]

Reimplemented in FeaturePlane.

QString * FeaturePlaneAbstract::getName

(

)

Get feature plane name.

virtual PlaneInputs* FeaturePlaneAbstract::getNonFourierInputList

(

)

[inline, virtual]

Reimplemented in FeaturePlane.

virtual PlaneInputs* FeaturePlaneAbstract::getRegularInputList

(

)

[inline, virtual]

Reimplemented in FeaturePlane.

int FeaturePlaneAbstract::getSpeed

(

)

[inline]

int FeaturePlaneAbstract::getSpeeds

(

)

[inline]

Reimplemented in MGMotionFeaturePlane.

int FeaturePlaneAbstract::getType

(

const QString

name

)

[static]

QString FeaturePlaneAbstract::getType

(

int

value

)

[static]

Reimplemented in FeaturePlaneProxy.

virtual QImage* FeaturePlaneAbstract::getVirtualImage

(

bool

showRect

)

[inline, virtual]

Reimplemented in InputVirtualFeaturePlane.

int FeaturePlaneAbstract::getXSize

(

)

int FeaturePlaneAbstract::getYSize

(

)

void FeaturePlaneAbstract::inhibitReturn

(

)

[virtual]

Reimplemented in FeaturePlane, InputFeaturePlane, InputFeaturePlaneAbstract, InputMultipleFeaturePlane, and InputLearningFeaturePlane.

void FeaturePlaneAbstract::init

(

)

[protected]

void FeaturePlaneAbstract::initSelectiveTuning

(

)

virtual bool FeaturePlaneAbstract::isInputFP

(

)

[inline, virtual]

Reimplemented in InputFeaturePlaneAbstract.

bool FeaturePlaneAbstract::isWTA

(

)

virtual bool FeaturePlaneAbstract::moveHead	(	int	deltaX,
		int	deltaY,
		bool	notify = true
	)		[inline, virtual]

todo update due to the fact we have implemented InputControllerAbstract with templates, we cannot do dynamic casting. we will have to overload a whole bunch of methods in the appropriate classes

Reimplemented in InputSocketFeaturePlane, and InputVirtualFeaturePlane.

void FeaturePlaneAbstract::notify

(

)

Notify all observers of new output being available

void FeaturePlaneAbstract::notify

(

bool

functional

)

Notify all observers of new output being available If functional is false, only GUI gets updated

void FeaturePlaneAbstract::PauseThread

(

)

Dummy worker to wake up the thread, just in case it was waiting due to a SYNC Notification

virtual void FeaturePlaneAbstract::processTargetPlane

(

)

[inline, virtual]

Reimplemented in InputControllerAbstract.

void FeaturePlaneAbstract::releaseGatingControl

(

)

[virtual]

Release gcMutex

void FeaturePlaneAbstract::releaseMap

(

)

[inline, virtual]

Reimplemented from Viewable.

virtual void FeaturePlaneAbstract::removeFeaturePlaneInput

(

FeaturePlaneInput *

theElement

)

[inline, virtual]

Reimplemented in FeaturePlane.

virtual void FeaturePlaneAbstract::removeFeaturePlaneInput

(

FeaturePlaneAbstract *

theElement

)

[inline, virtual]

Reimplemented in FeaturePlane.

virtual void FeaturePlaneAbstract::removeFeaturePlaneInputs

(

)

[inline, virtual]

Reimplemented in FeaturePlane.

void FeaturePlaneAbstract::run

(

)

Entry point for thread pool invocation.

Reimplemented in FeaturePlane, InputFeaturePlaneAbstract, InputFeaturePlane, BPLearningFeaturePlane, InputCameraFeaturePlane, and FeaturePlaneProxy.

void FeaturePlaneAbstract::selectWinner	(	int	selectX,
		int	selectY
	)

Manually select winners from the UI

void FeaturePlaneAbstract::setFeatureBias

(

float

tmpBias

)

Initialize Feature bias. One value for the whole feature map (0-1, default 1)

void FeaturePlaneAbstract::setFunction

(

pt2Function

theFunction

)

Set helper function call that will be invoked at the end of each iteration. The function has to be defined as a static member of the class FeaturePlaneHelper

void FeaturePlaneAbstract::setLayerIndex

(

int

l

)

Set the layer to which this fp belongs

void FeaturePlaneAbstract::setName

(

QString *

tmpName

)

Set feature plane name.
Also parse the name for motion-model style display purposes
Convention: Some_name_SCALE_ANGLE_DELTA (where SCALE, ANGLE and DELTA are numbers)
Note: not all need to be present, but they can not be missing from the beginning or middle, i.e. you can have SCALE without DELTA, but not DELTA without SCALE and ANGLE

void FeaturePlaneAbstract::setNode

(

NodeAbstract *

n

)

Set the node to which this FP belongs.

void FeaturePlaneAbstract::setParameters

(

paramMap

params

)

void FeaturePlaneAbstract::setSpatialBias

(

Matrix *

tmpSpatialBias

)

Initialize Spatial bias map. Does not do a deep copy, so be careful !

void FeaturePlaneAbstract::setSpatialTaskBias

(

OutputImage *

tmpSpatialBias

)

Initialize Spatial bias map based on task as a first approximation, threshold input and scale

void FeaturePlaneAbstract::setTheta

(

float

t

)

Set STM WTA theta parameter.

void FeaturePlaneAbstract::setThreshold

(

float

t

)

Set the node to which this FP belongs.

void FeaturePlaneAbstract::setThresholdBinarize

(

float

t

)

void FeaturePlaneAbstract::setThresholdPercent

(

float

t

)

void FeaturePlaneAbstract::StartThread

(

)

void FeaturePlaneAbstract::TerminateThread

(

)

void FeaturePlaneAbstract::updateNN	(	Observer *	sourceFP,
		bool	functional
	)		[virtual]

Implements Observer.

void FeaturePlaneAbstract::XMLSerialize	(	int	tabs,
		QTextStream *	buf
	)

---

Friends And Related Function Documentation

friend class ClientSocket [friend]

friend class FeaturePlaneFactory [friend]

Reimplemented in InputSocketFeaturePlane, InputFeaturePlane, InputMultipleFeaturePlane, LearningFeaturePlane, InputVirtualFeaturePlane, FeaturePlane, InputLearningFeaturePlane, STSOMFeaturePlane, InputCameraFeaturePlane, MotionFeaturePlane, CTSOMFeaturePlane, SOMFeaturePlane, BPLearningFeaturePlane, SaliencyOutputFeaturePlane, MGMotionFeaturePlane, FeaturePlaneFHM, FeaturePlaneHistogram, ConstantInputFeaturePlane, and SaliencyFeaturePlane.

friend class Network [friend]

Reimplemented in InputFeaturePlane.

friend class UI_DesignerPropDisplay [friend]

friend class UI_FeaturePlaneProp [friend]

friend class UI_FilterProp [friend]

---

Member Data Documentation

list<NodeProxy*> FeaturePlaneAbstract::_observersProxyList [protected]

NodeAbstract* FeaturePlaneAbstract::_parentNode [protected]

int FeaturePlaneAbstract::alpha [protected]

int FeaturePlaneAbstract::angles [protected]

OutputImage** FeaturePlaneAbstract::currentGatingControlOutputList [protected]

int FeaturePlaneAbstract::currentLayer = 0 [static]

OutputImage* FeaturePlaneAbstract::currentOutput [protected]

OutputImage** FeaturePlaneAbstract::currentOutputList [protected]

QMutex FeaturePlaneAbstract::currentOutputListMutex [protected]

QMutex FeaturePlaneAbstract::currentOutputMutex [protected]

FPDesignerInfo FeaturePlaneAbstract::designerInfo

display parameters for the UI_Designer

float FeaturePlaneAbstract::featureBias [protected]

Feature bias factor - 0-1

int FeaturePlaneAbstract::fpID [protected]

int FeaturePlaneAbstract::fpType

UI_FeaturePlane* FeaturePlaneAbstract::fpViewerWindow

FP output viewer window.

pt2Function FeaturePlaneAbstract::functionCall [protected]

set<OutputImage*>** FeaturePlaneAbstract::gatingControlHistoryList [protected]

int FeaturePlaneAbstract::gatingControlInputCount

PlaneInputs FeaturePlaneAbstract::gatingControlInputList [protected]

int FeaturePlaneAbstract::gatingControlOutputCount [protected]

QMutex FeaturePlaneAbstract::gatingControlOutputListMutex [protected]

QMutex FeaturePlaneAbstract::gcMutex [protected]

Mutex controling access to the gating control

int FeaturePlaneAbstract::height [protected]

paramMap FeaturePlaneAbstract::initParams [protected]

int FeaturePlaneAbstract::inputs [protected]

Matrix* FeaturePlaneAbstract::iorMap

Inhibition of return map. STM requires selected connections to be inhibited for IOR, this is not it, just black out parts of the input for now

bool FeaturePlaneAbstract::is_WTA [protected]

int FeaturePlaneAbstract::iterations

the no. of iterations

int FeaturePlaneAbstract::layerIndex [protected]

UI_NeuronTimeCourse* FeaturePlaneAbstract::neuronTimeCourseWindow

Neuron Time Course window.

Network* FeaturePlaneAbstract::nn [protected]

QMutex FeaturePlaneAbstract::observerProxyMutex [protected]

set<OutputImage*> FeaturePlaneAbstract::outputHistory [protected]

set<OutputImage*>** FeaturePlaneAbstract::outputHistoryList [protected]

int FeaturePlaneAbstract::outputs [protected]

Matrix* FeaturePlaneAbstract::spatialBias [protected]

Spatial bias mask

int FeaturePlaneAbstract::speed [protected]

int FeaturePlaneAbstract::speeds [protected]

OutputImage* FeaturePlaneAbstract::theGatingControl [protected]

Neuron* FeaturePlaneAbstract::theNeuronStrategy

The neuron strategy

NotifyStrategyAbstract* FeaturePlaneAbstract::theNotifyStrategy

The notify strategy

float FeaturePlaneAbstract::theta [protected]

float FeaturePlaneAbstract::threshold [protected]

All activations below this value are set to zero

float FeaturePlaneAbstract::threshold_binarize [protected]

All activations below this percentage of the maximum are set to zero, above set to 1. Percent is expressed as 0.xxx (i.e. for 80% declare 0.8 in the xml)

float FeaturePlaneAbstract::threshold_percent [protected]

All activations below this percentage of the maximum are set to zero. Percent is expressed as 0.xxx (i.e. for 80% declare 0.8 in the xml)

int FeaturePlaneAbstract::totalWorkingThreads = 0 [static]

int FeaturePlaneAbstract::width [protected]

int FeaturePlaneAbstract::workingThreads = 0 [static]

QWaitCondition* FeaturePlaneAbstract::workingThreadsCond [static]

Specify whether the feature planes should wait for each other or not

QMutex FeaturePlaneAbstract::workingThreadsMutex [static]

OutputImage* FeaturePlaneAbstract::workOutput [protected]

Temporary storage for the output

OutputImage** FeaturePlaneAbstract::workOutputList [protected]

---

The documentation for this class was generated from the following files:

• C:/Users/albertlr/projects/TarzaNN/TarzaNN/FeaturePlaneAbstract.h
• C:/Users/albertlr/projects/TarzaNN/TarzaNN/FeaturePlaneAbstract.cpp
