Filter Class Reference

#include <Filter.h>

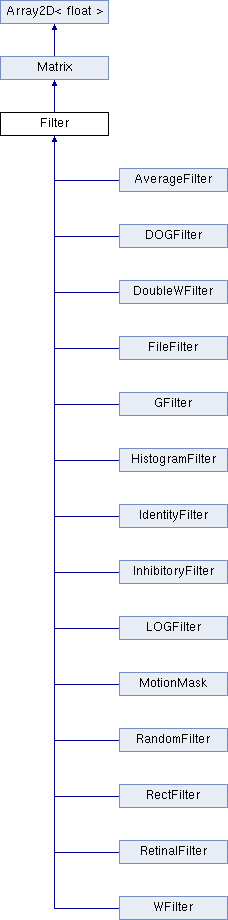

Inheritance diagram for Filter:

List of all members.

Public Member Functions
	Filter (int w, int h)
	Filter (QString fileName, int fileType)
float *	getKernel ()
void	_convolve (Matrix *input, Matrix *output)
void	convolve (Matrix *input, Matrix *output, bool scale=true)
void	STMconvolve (Matrix *input, GatingUnits *gu)
void	setFromConvolveWindow (int _x1, int _y1, int _w, int _h)
void	setPaddingType (int _type)
int	getPaddingType ()
void	separateKernel ()
	~Filter ()
void	addOperation (const QString &opName, const QString &opValue)
void	setParameters (paramMap params)
void	XMLSerialize (int tabs, QTextStream *buf)
void	adjust_l (float l1, float l2)
QImage *	getPreviewImage ()
Static Public Member Functions
static void	_convolveRetinal (Matrix *input, Matrix *output, int padding, int distPixels)
static void	destroyRetinalImageFilters ()
static void	svd (double **a, int m, int n, double w[], double **v)
static double	pythag (double a, double b)
static int	getType (const QString &name)
static QString	getType (int value)
static double	compute_skip (int input, int output, int filter)
Public Attributes
float	l1_norm
float	l2_norm
int	env_x
int	env_y
int	pos_x
int	pos_y
int	fType
Static Public Attributes
static Filter *	retinalImageFilters [1024]
static int	retinalImageFilterNo = 0
static int	retinalImageFilterSize = 21
static QMutex	retinalMutex
Protected Types
enum	{ SEPARABLE_NOT_CHECKED, SEPARABLE_NO, SEPARABLE_YES }
Protected Member Functions
void	find_limits (int w, int h, float sigma, float aspect, float orientation, float &h_m_x, float &h_m_y)
Protected Attributes
int	separable_status
Filter **	separated_filters
Filter *	nextFilter
paramMap	initParams
QLinkedList< FilterOperation >	operations
Friends
class	UI_FilterProp
class	UI_DesignerPropDisplay

---

Detailed Description

Filters connect feature planes. They essentially encode the structure of the receptive fields

---

Member Enumeration Documentation

anonymous enum [protected]

Enumerator:

SEPARABLE_NOT_CHECKED
SEPARABLE_NO
SEPARABLE_YES

---

Constructor & Destructor Documentation

Filter::Filter	(	int	w,
		int	h
	)

Constructor. Note that w and h must be odd.

Filter::Filter	(	QString	fileName,
		int	fileType
	)

Filter::~Filter

(

)

---

Member Function Documentation

void Filter::_convolve	(	Matrix *	input,
		Matrix *	output
	)

Perform convolutions. As a preprocessing step, edges are extended and mirrored

void Filter::_convolveRetinal	(	Matrix *	input,
		Matrix *	output,
		int	padding,
		int	distPixels
	)		[static]

Convolves an input image in order to create a retinal image using gradual blurring

void Filter::addOperation	(	const QString &	opName,
		const QString &	opValue
	)

add operation

void Filter::adjust_l	(	float	l1,
		float	l2
	)

static double Filter::compute_skip	(	int	input,
		int	output,
		int	filter
	)		[inline, static]

void Filter::convolve	(	Matrix *	input,
		Matrix *	output,
		bool	scale = true
	)

Decisions around convolutions: separable filters, down- and up-sampling, cascading filters

Not really convolution, filters are applied only inside the input

void Filter::destroyRetinalImageFilters

(

)

[static]

void Filter::find_limits	(	int	w,
		int	h,
		float	sigma,
		float	aspect,
		float	orientation,
		float &	h_m_x,
		float &	h_m_y
	)		[protected]

float * Filter::getKernel

(

)

Returns a packed array representation of the filter. If necessary, the function will create it.

int Filter::getPaddingType

(

)

QImage * Filter::getPreviewImage

(

)

int Filter::getType

(

const QString &

name

)

[static]

QString Filter::getType

(

int

value

)

[static]

double Filter::pythag	(	double	a,
		double	b
	)		[static]

void Filter::separateKernel

(

)

Decide if filter is separable, and if it is, do it

void Filter::setFromConvolveWindow	(	int	_x1,
		int	_y1,
		int	_w,
		int	_h
	)

Stores the parameters of the convolve window, and sets useConvolveWindow true

void Filter::setPaddingType

(

int

_type

)

Padding for convolution

void Filter::setParameters

(

paramMap

params

)

void Filter::STMconvolve	(	Matrix *	input,
		GatingUnits *	gu
	)

Convolve input with filter, but don't sum, store intermediate resultys in the gating units

Convolution for Selective Tuning. Stores intermediate results in the GatingUnits. Not really convolution, filters are applied only inside the input

void Filter::svd	(	double **	a,
		int	m,
		int	n,
		double	w[],
		double **	v
	)		[static]

Perform SVD of filter

void Filter::XMLSerialize	(	int	tabs,
		QTextStream *	buf
	)

---

Friends And Related Function Documentation

friend class UI_DesignerPropDisplay [friend]

friend class UI_FilterProp [friend]

---

Member Data Documentation

int Filter::env_x

int Filter::env_y

int Filter::fType

paramMap Filter::initParams [protected]

float Filter::l1_norm

float Filter::l2_norm

Filter* Filter::nextFilter [protected]

Pointer to next filter for cascading filters (e.g. DOGFilter)

QLinkedList<FilterOperation> Filter::operations [protected]

int Filter::pos_x

int Filter::pos_y

int Filter::retinalImageFilterNo = 0 [static]

Filter * Filter::retinalImageFilters [static]

int Filter::retinalImageFilterSize = 21 [static]

QMutex Filter::retinalMutex [static]

int Filter::separable_status [protected]

Separability status

Filter** Filter::separated_filters [protected]

if the filter was separated, here are the two pieces

---

The documentation for this class was generated from the following files:

• C:/Users/albertlr/projects/TarzaNN/TarzaNN/Filter.h
• C:/Users/albertlr/projects/TarzaNN/TarzaNN/Filter.cpp
