The key structure in the network. A feature plane is a collection of identical neurons, all receiving input from the same other feature planes, and all having the same receptive field structure (i.e. filters). More...

#include <FeaturePlane.h>

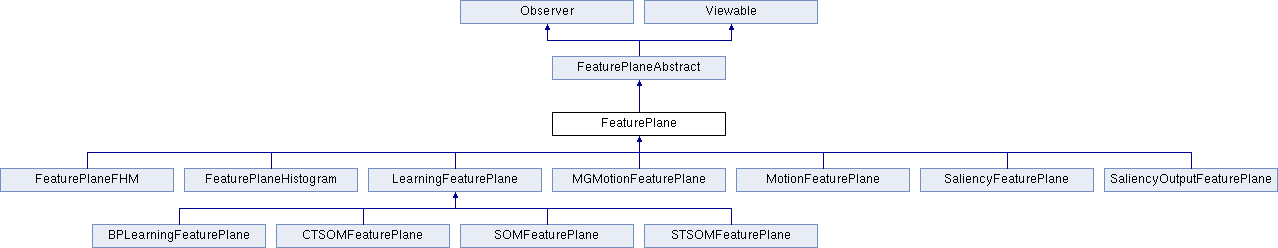

Inheritance diagram for FeaturePlane:

List of all members.

Public Member Functions
OutputImage *	getCurrentOutput (int index)
	~FeaturePlane ()
FeaturePlaneInput *	addFilter (Filter f, FeaturePlaneAbstract fp, int type, int fpOutputIndex, bool wta)
void	editFeaturePlaneInput (FeaturePlaneInput theOld, FeaturePlaneInput theNew)
void	removeFeaturePlaneInput (FeaturePlaneInput *f)
void	removeFeaturePlaneInput (FeaturePlaneAbstract *f)
void	removeFeaturePlaneInputs ()
virtual PlaneInputs *	getRegularInputList ()
virtual PlaneInputs *	getErrorInputList ()
virtual PlaneInputs *	getMaskingInputList ()
virtual PlaneInputs *	getNonFourierInputList ()
float	getMaxActivation ()
void	inhibitReturn ()
Protected Member Functions
	FeaturePlane (Network net, int l, QString n, int w, int h, int angles, int speeds, int alpha, int speed, bool isWTA, bool visible, Neuron neuron, NotifyStrategyAbstract notify)
	FeaturePlane ()
virtual void	step ()
virtual void	run ()
void	applyGatingControl ()
void	finalize ()
void	sumActivations ()
void	ThreadEntry ()
void	_removeFeaturePlaneInputHelper1 (FeaturePlaneInput f, PlaneInputs inputList, int &inputCount, bool deleteAll=false)
void	_removeFeaturePlaneInputHelper2 (FeaturePlaneAbstract f, PlaneInputs inputList, int &inputCount)
void	_editFeaturePlaneInput (FeaturePlaneInput theOld, FeaturePlaneInput theNew, PlaneInputs *inputList)
virtual void	computeActivations ()
void	computeActivations (PlaneInputs inputPlane, MatrixVector activations)
void	computeActivationFromGating (PlaneInputs inputPlane, MatrixVector activations)
void	computeNonFourierActivations (PlaneInputs inputPlane, MatrixVector activations)
virtual void	sumActivations (MatrixVector regularActivations, MatrixVector nonFourierActivations, Matrix *totalActivation)
void	_sumActivations (MatrixVector activations, Matrix *totalActivation)
void	STM_sumActivations (MatrixVector activations, Matrix *totalActivation)
void	computeGatingUnits (PlaneInputs inputPlane)
void	applyMasking (OutputImage workOutput, MatrixVector maskingActivations, Matrix totalActivation)
void	applyThreshold (Matrix *totalActivation)
Protected Attributes
PlaneInputs	regularInputList
PlaneInputs	errorInputList
PlaneInputs	maskingInputList
PlaneInputs	nonFourierInputList
GatingUnitsVector	gatingUnitsList
MatrixVector	regularActivations
MatrixVector	maskingActivations
MatrixVector	nonFourierActivations
Matrix *	totalActivation
int	regularInputCount
int	errorInputCount
int	maskingInputCount
int	nonFourierInputCount
Matrix *	tempResized
void(FeaturePlane::*	doComputeActivations )(PlaneInputs inputPlane, MatrixVector activations)
void(FeaturePlane::*	doSumActivations )(MatrixVector activations, Matrix *totalActivation)
Friends
class	FeaturePlaneFactory

Detailed Description

The key structure in the network. A feature plane is a collection of identical neurons, all receiving input from the same other feature planes, and all having the same receptive field structure (i.e. filters).

Constructor & Destructor Documentation

FeaturePlane::FeaturePlane	(	Network *	net,
		int	l,
		QString *	n,
		int	w,
		int	h,
		int	angles,
		int	speeds,
		int	alpha,
		int	speed,
		bool	isWTA,
		bool	visible,
		Neuron *	neuron,
		NotifyStrategyAbstract *	notify
	)		`[protected]`

Constructor.

Parameters:

net	network to which the FP belongs
l	index of the layer to which the FP belongs
n	name of the feature plane
w	width
h	height
visible	should be shown in the UI? Constructor.
net	network to which the FP belongs
l	index of the layer to which the FP belongs
n	name of the feature plane
w	width
h	height
visible	should be shown in the UI?
ns	neuron type (in case the neuron type can not be created by its default constructor)

FeaturePlane::~FeaturePlane ( )

todo delete notify, neuron

Todo:: need to delete the inputFilters!!!!

FeaturePlane::FeaturePlane ( ) [protected]

Member Function Documentation

void FeaturePlane::_editFeaturePlaneInput	(	FeaturePlaneInput *	theOld,
		FeaturePlaneInput *	theNew,
		PlaneInputs *	inputList
	)		`[protected]`

void FeaturePlane::_removeFeaturePlaneInputHelper1	(	FeaturePlaneInput *	f,
		PlaneInputs *	inputList,
		int &	inputCount,
		bool	deleteAll = `false`
	)		`[protected]`

void FeaturePlane::_removeFeaturePlaneInputHelper2	(	FeaturePlaneAbstract *	f,
		PlaneInputs *	inputList,
		int &	inputCount
	)		`[protected]`

void FeaturePlane::_sumActivations	(	MatrixVector	activations,
		Matrix *	totalActivation
	)		`[protected]`

Reimplemented in FeaturePlaneFHM, SaliencyOutputFeaturePlane, FeaturePlaneHistogram, and SaliencyFeaturePlane.

FeaturePlaneInput * FeaturePlane::addFilter	(	Filter *	f,
		FeaturePlaneAbstract *	fp,
		int	type,
		int	fpOutputIndex,
		bool	wta
	)		`[virtual]`

Add an input filter/feature plane pair.

Parameters:

f	- filter
fp	- input feature plane
type	- input type: regular, non-Fourier, masking
fpOutputIndex	- in case input feature plane has more than one output, which one are we interested in

Reimplemented from FeaturePlaneAbstract.

Reimplemented in LearningFeaturePlane, STSOMFeaturePlane, and CTSOMFeaturePlane.

void FeaturePlane::applyGatingControl ( ) [protected]

Apply gating, propagate selection to inputs

Reimplemented from FeaturePlaneAbstract.

Reimplemented in BPLearningFeaturePlane, and MotionFeaturePlane.

void FeaturePlane::applyMasking	(	OutputImage *	workOutput,
		MatrixVector	maskingActivations,
		Matrix *	totalActivation
	)		`[protected]`

Todo:

resize masking activations

Todo:: threshold

void FeaturePlane::applyThreshold ( Matrix * totalActivation ) [protected]

Threshold activations. All activations below threshold or below threshold_percent of the maximum value are set to zero.

void FeaturePlane::computeActivationFromGating	(	PlaneInputs	inputPlane,
		MatrixVector	activations
	)		`[protected]`

void FeaturePlane::computeActivations ( ) [protected, virtual]

Reimplemented in BPLearningFeaturePlane, and FeaturePlaneHistogram.

void FeaturePlane::computeActivations	(	PlaneInputs	inputPlane,
		MatrixVector	activations
	)		`[protected]`

Reimplemented in FeaturePlaneHistogram.

void FeaturePlane::computeGatingUnits ( PlaneInputs inputPlane ) [protected]

void FeaturePlane::computeNonFourierActivations	(	PlaneInputs	inputPlane,
		MatrixVector	activations
	)		`[protected]`

LIMITATIONS

even number of inputs
pairs of inputs share a filter

void FeaturePlane::editFeaturePlaneInput	(	FeaturePlaneInput *	theOld,
		FeaturePlaneInput *	theNew
	)		`[virtual]`

Reimplemented from FeaturePlaneAbstract.

void FeaturePlane::finalize ( ) [protected]

Add current output to output history, notify Observers

OutputImage * FeaturePlane::getCurrentOutput ( int index ) [virtual]

Returns the last computed output

Reimplemented from FeaturePlaneAbstract.

virtual PlaneInputs* FeaturePlane::getErrorInputList ( ) [inline, virtual]

virtual PlaneInputs* FeaturePlane::getMaskingInputList ( ) [inline, virtual]

Reimplemented from FeaturePlaneAbstract.

float FeaturePlane::getMaxActivation ( ) [inline, virtual]

Reimplemented from FeaturePlaneAbstract.

virtual PlaneInputs* FeaturePlane::getNonFourierInputList ( ) [inline, virtual]

Reimplemented from FeaturePlaneAbstract.

virtual PlaneInputs* FeaturePlane::getRegularInputList ( ) [inline, virtual]

Reimplemented from FeaturePlaneAbstract.

void FeaturePlane::inhibitReturn ( ) [virtual]

Reimplemented from FeaturePlaneAbstract.

void FeaturePlane::removeFeaturePlaneInput ( FeaturePlaneInput * f ) [virtual]

Reimplemented from FeaturePlaneAbstract.

void FeaturePlane::removeFeaturePlaneInput ( FeaturePlaneAbstract * f ) [virtual]

Reimplemented from FeaturePlaneAbstract.

void FeaturePlane::removeFeaturePlaneInputs ( ) [virtual]

Reimplemented from FeaturePlaneAbstract.

void FeaturePlane::run ( ) [protected, virtual]

Do one computation step - compute activations, and FP output

Reimplemented from FeaturePlaneAbstract.

Reimplemented in BPLearningFeaturePlane.

void FeaturePlane::step ( ) [protected, virtual]

Do one computation step - compute activations, and FP output

Reimplemented in STSOMFeaturePlane, CTSOMFeaturePlane, BPLearningFeaturePlane, SOMFeaturePlane, and MotionFeaturePlane.

void FeaturePlane::STM_sumActivations	(	MatrixVector	activations,
		Matrix *	totalActivation
	)		`[protected]`

void FeaturePlane::sumActivations ( ) [protected]

void FeaturePlane::sumActivations	(	MatrixVector	regularActivations,
		MatrixVector	nonFourierActivations,
		Matrix *	totalActivation
	)		`[protected, virtual]`
