Macro Photography - Getting Closer and Bigger

At some point, you may want to try your hand at taking photographs of objects closer than normally possible. In photography, this is referred to as macro photography or photomacrography. This may be because you have something small you want to photograph, or possibly you want to show more detail in part of a larger object. To do this, you need a means of focusing closer to the object than is normally possible (which increases the apparent magnification). If you do not want to invest in a dedicated macro lens, there are methods and fixtures/attachments which will allow you to do this with your existing lens. At this writing, the price of new Nikon Micro lenses is: 55/2.8 - $335, 60/2.8 - $355, 105/2.8 - $600, and 200/4 - $1250. You may want to try your hand at one of the following methods before investing in these lenses to see if macro is something which will hold your interest. Although the following is directed at Nikon equipment, the general principles apply to any system. I recommend John Shaw's Closeups In Nature ISBN 0-8174-4051-8 for more information on technique.

  1. Reversing Rings - Allow you to mount your existing lens backwards on your camera. Although it may sound (and look) a little odd, mounting a lens backwards on your camera can allow you to take photographs up to more than 3X life size depending on the focal length of the lens you use. No additional optics are added.

  2. Extension Tubes - The lens is mounted in a normal manner with spacers (extension tubes) mounted between the camera and the lens. The effect of adding extension tubes is to reduce the minimum focusing distance of your lens. As the amount of extension approaches the focal length of the lens, the object being photographed will approach life (1:1) size. The tubes do not have optical elements - no additional optics are added.

  3. Bellows - The lens is mounted in a normal or reversed manner with a bellows (continuously variable extension) mounted between the camera and the lens. The photograph can approach 22X life size depending on the focal length of the lens used and the method of mounting (normal or reversed). Bellows do not have optical elements.

  4. Diopters (Closeup lens) - The lens is mounted normally and optical elements are added to the front of the lens to increase apparent magnification up to 3X life size using only one diopter, more if stacked.

  5. Stacking Lenses (Macro coupler) - The lens is mounted normally and a shorter focal length lens is mounted to it's filter ring in a reversed position (and you thought just the reversing ring made you look odd). In effect, the second lens is an added diopter. Normal magnifications can approach 8X life size.


Nikon Macro Adapter Ring BR-2A/BR-5 - Larger than Life

The following describes one method by mounting a lens directly to the camera in the reversed position.

A Macro Adapter Ring is used to mount a lens in the reverse position on a camera body, a bellows attachment (see Nikon PB4 Page 1 or Page 2 for reproduction ratios) or an extension ring. When shooting at reproduction ratios greater than 1X (life size), mounting the lens in reverse improves image quality and increases the working distance from the lens to the subject. The BR-2A can be used with any lens having a 52mm filter thread, however if the lens is to be mounted directly to the camera via the BR-2A, the lens should have a focal length of between 20 and 58mm. For lenses having a 62mm filter thread, it is necessary to use a step down ring (62mm-52mm) BR-5. Typical cost of BR-2A is about $20, step down rings are about $6-$15.

With the BR-2A, you must use the stop-down method of metering.

With the N4004, N5005, N50 and N60 (and their variants) the camera meter coupling does not operate and the exposure indicator lights do not appear.

When the BR-2A is used with a F4 series camera equipped with the Multi-Meter finder DP-20 or AE Section Finder DA-20, exposure compensation is required as shown in the following:

Metering System

Metering Method

Finder

Aperture

Center weight

Spot

DP-20

< f /5.6

No comp.

+1

DP-20

f/5.6

-1

+1

DA-20

---

No comp.

+1

When you mount a lens directly to the camera via the BR-2A, you must move the camera back and forth to focus. The exception to this is zoom lenses, where the zoom ring can be used for fine focusing. When mounting the lens, set the focus adjustment to infinity. The following chart gives the reproduction ration possible with the lens (only Nikkor) shown - you will note that the shorter the lens focal length, the higher the reproduction rate possible.

Note 1 - The BR-5 (or step-down 62mm-52mm ring) is required to mount the lens in reverse.

Note 2 - When mounting the 55mm/2.8 in reverse, avoid strong pressure to the end of the lens nearest the the aperture ring, especially if the focus ring is extended, could cause camera malfunction.

Note 3 - Image quality may deteriorate at the infinity setting.

Auto Focus (AF) Lens

Reproduction Ratio

20mm/2.8 (SEE NOTE 1) 3.4X
24mm/2.8 2.5X
28mm/2.8 2.0X
35mm/2 1.4X
50mm/1.4 1/1.1X
50mm/1.8 1/1.4X
Micro 55mm/2.8 (SEE NOTE 2) 1.2X
Micro 60mm/2.8 (SEE NOTE 1) 1/1.2X
85/1.8 1/2.8X
Zoom 24-50mm/3.3-4.5 (SEE NOTE 1) 3.0X - 1.0X
Zoom 28-70mm/3.5-4.5 2.2X - 1/5.6X
Zoom 28-85mm/3.5-4.5 (SEE NOTE 1) 3.0X - 1/27.5X
Zoom 35-70mm/2.8 (SEE NOTE 1) 2.3X - 1/1.9X
Zoom 35-70mm/3.3-4.5 2.1X - 1/6.1X
Zoom 35-80mm/4-5.6D 1.7X - 1/18.6X
Zoom 35-105mm/3.5-4.5 1.8X - 1/6.1X
Zoom 35-135mm/3.5-4.5 2.2X - 1/31.7X
Zoom 70-210mm/4-5.6D (SEE NOTE 1) 1/1.6X - 1/infinity X
Zoom 75-300mm/4.5-5.6 1/1.2X - 1/infinity X

Manual Focus Lenses

Reproduction Ratio

20mm/2.8 (SEE NOTE 1) 3.4X
24mm/2 2.6X
24mm/2.8 2.6X
28mm/2 2.2X
28mm/2.8 2.1X
35mm/1.4 1.8X
35mm/2 1.6X
35mm/2.8 1.5X
35mm/2.8 PC 1.6X
50mm/1.2 1.1X
50mm/1.4 1/1.1X
50mm/1.8 1/2X
55mm/2.8 Micro 1/1.1X
58mm/1.2 Nocturnal 1/1.2X
Zoom 28-85mm/3.5-4.5 (SEE NOTE 1) 2.9X - 1/35.8X
Zoom 35-70mm/3.3-4.5 2.1X - 1/6.1X
Zoom 35-105mm/3.5-4.5 1.8X - 1/6X
Zoom 35-135mm/3.5-4.5 (SEE NOTE 1) 2.2X - 1/14.9X
Zoom 35-200mm/3.5-4.5 (SEE NOTE 1) 2.2X - 1/Infinity X (SEE NOTE 3)

O.K., so your favorite Nikon lens isn't shown above.

First question - what size is the filter ring? If it's larger than 62mm, are you going to stack step-down rings until it fits? Go ahead, you folks with a 102mm filter size- let me know how you make out, but you'll probably have to move closer to the Sun to get enough light.

Second question - If it's a 52 or 62 mm filter size and if you observe the lenses shown, you can have a rough idea of what to expect. As an example, a 24-120 at the shortest focal length can be expected to provide somewhere in the neighborhood of 2.5X - 3.0X (roughly). Since you're trying to make things bigger on film, you probably won't be using the longer focal length part of the zoom anyway - what would be the point? What is the mathematical equivalent of 1/Infinity ? Plug it into your pocket calculator - small eh? I thought you were trying to get larger, not smaller.

Back to top | Extension Tubes | Bellows | Diopters | Stacking Lenses | Home


Extension Tubes

Extension tubes are simply fixed length spacers that fit between your camera and lens, they contain no optics. They may be stacked together to provide more extension for longer focal length lenses and can also be used in conjunction with teleconverters to provide closer focusing than possible with a lens/teleconverter combination. Tubes shown are by Kenko and are capable of autofocus.

Extension tubes offer a convenient, portable way to focus closer than normal. As with all devices in the light path, there is some light loss - normally accounted for by your SLR camera metering system automatically.The amount of light lost is dependant on the focal length of the lens in use and the amount of extension.

..............................................

For example, with the PK-13 tube (27.5mm extension):

The mathematics (for those inclined):

light loss = ((extension + focal length) / focal length))^2

stops lost = log2(light loss)

.......................................................................

Use of a tripod and remote release is recommended as you approach 1:1 ratios. You lose infinity focus when using these tubes

The amount of extension needed to obtain life-size (1:1) reproduction with a normal (not macro) lens is equal to the focal length of the lens. (i.e., for a 50mm lens, 50mm of extension will bring the reproduction rate to 1:1). To calculate the reproduction ratio given a lens focal length and extension, use the formula :

Reproduction ratio = focal length of lens/amount of extension

Example : 100mm lens/50mm extension = 1:2 (or half life size) - the same extension for a 200mm lens would yield 1:4.

For macro lenses, you must take into consideration the amount of apparent extension built into the lens itself. For example, a Nikon 105/2.5 macro lens will go to 1:2 (half life size) by itself, indicating that 52.5mm of extension is already built into the lens. To bring this lens to 1:1, an additional 52.5mm of extension is required. That is the amount of extension offered by the Nikon PN-11 tube, which was designed expressly for that lens. Use the formula :

Reproduction ratio = (focal length of lens - macro extension)/amount of additional extension.

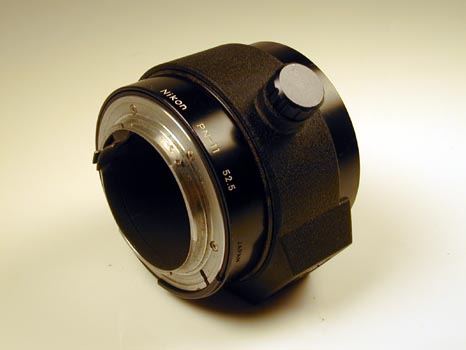

Nikon PN-11 shown at left.

The following shows Nikon extension tubes and their extension length (All are manual focus only).

  1. Nikon PN-11 - 52.5mm extension, built-in tripod collar - Designed to bring Nikon 105mm micro lens to 1:1.

  2. Nikon PK-11A - 8mm extension

  3. Nikon PK-12 - 14mm extension

  4. Nikon PK-13 - 27.5mm extension - Designed to bring Nikon 55mm micro lens to 1:1

As previously mentioned, Kenko also offers extension tubes (in both manual and autofocus) with the Nikon mount. These tubes come in a set of three that includes a 12mm, 20mm and 36mm (total of 68mm). A 25mm AF tube is also available. By stacking (and unstacking) tubes to match the lens in use, a combination can usually be found that will give the results desired unless greater reproduction ratios are needed. Typical cost of Kenko manual focus set is about $90, AF set is $150.

Note : If you have a Nikon N50, N60, N4004 or N5005 (or their variants), you must use AF capable extension tubes to retain metering capability.

Back to top | Reversing Rings | Bellows | Diopters | Stacking Lenses | Home


Bellows

If you read the section on extension tubes above, think of a bellows as a variable length extension tube. Nikon PB4 Page 1 or Page 2 JPG files show the reproduction ratios possible with different lenses used with that bellows unit, but the amount of extension and the results are the same with any bellows unit. Typical cost of bellows is about $220, a double release $40-$65. There are several important considerations when using bellows instead of fixed length extension tubes.



Bellows can give much higher reproduction ratios (up to 11X by themselves, up to 22X with bellows extenders for the PB-6) due to the longer physical length - and - they are continuously variable throughout their adjustment range unlike the fixed length extension tubes.

Bellows are not as portable and as easily held as fixed extension tubes in the field. Focusing becomes extremely critical, any movement can throw focus off - and - use of remote release and tripod is essential.


Note : If you have a Nikon N50, N60, N4004 or N5005 (or their variants) , you will lose metering capability when using bellows.

Nikon Bellows Units
Bellows II - (re-modeled rangefinder bellows for Nikon F)
PB-3 - (round bellows rather than square)
PB-4 - dual, twin rail frame (built-in focusing rail), independent movement of body or lens standard, swing and shift of lens standard. Body standard allows for horiz. or vert. shooting posistion. Needs BR-4 ring and AR-4 or AR-7 double cable release* to get semi-automatic diaphragm action, and BR-2 ring to shoot with lenses reversed.
PB-5 - Simplified PB-4. Single twin-rail frame, no focusing rail -- tripod mounts at front and rear of unit. Horiz. or vert. shooting. Needs BR-4 ring and AR-4 or AR-7 double cable release* to get semi-automatic diaphragm action, and BR-2 ring to shoot with lenses reversed.
PB-6 - Double dovetail rail, independent movement of body or lens standard, built-in focusing rail. Built-in semi-auto. diaphragm ring - still needs a double cable release for semi-auto diaphragm action. (But you don't need to buy a BR-4 ring, the lens standard reverses, eliminating the need to buy a BR-2 reversing ring to shoot with a lens reversed.)

* The lens mechanism is not coupled through the Nikon bellows as they are with extension tubes, you must use a special 'double' release so the lens and the camera mechanisms work together. Use one of the following to obtain semi- automatic diaphragm operation:


BR-4 Semiauto Diaphragm Ring - female F-Bayonet, male F-Bayonet , 9mm extension, semi-automatic diaphragm coupled, not meter coupled . This ring provides for a semiautomatic diaphragm when used with Bellows units. It is spring-loaded so that the diaphragm is held open without any pressure from one end of a double-cable release, but stops down to the appropriate aperture when the release is squeezed.

BR-6 Semiauto Diaphragm Ring - female F-Bayonet, male F-Bayonet, 9mm extension, semi-automatic diaphragm coupled, not meter coupled. When using the PB-4 or PB-5 bellows with a double cable release, this ring enables you to retain automatic diaphragm control with PB-4, PB5 and PB6 with AR4/7/10 cable releases. BR-5 allows mounting lens with 62mm thread (use with BR-2A).

Bellows Reproduction Rates

Note : The following table gives reproduction rates for selected lenses with standard extension bellows. Reproduction ratios that are given below are only approximate values - if exact ratios are desired, determine through experimentation or measurement of extension. (See Extension Tubes and Reversing Rings for formulas)

Lens Type

Lens Mounting Position

Approx. Reproduction Ratio

Remarks

24mm/f:2.8

Reverse

4X - 11X

Image is at it's best at f:8 and degenerates as lens is stopped down further.

28mm/f:3.5

Normal

1X - 3X

The more the lens is stopped down, the better the image. Desirable for copying.

28mm/f:3.5

Reverse

4X - 9X

Image is at it's best at f:8 and degenerates as lens is stopped down further.

35mm/f:2

Normal

1X - 5X

The more the lens is stopped down, the better the image.

35mm/f:2

Reverse

3X - 7X

Image at it's best at f:8 and degenerates if stopped down further.

35mm/f:2.8

Normal

1X - 5X

The more the lens is stopped down, the better the image.

35mm/f:2.8

Reverse

3X - 7X

Image is at it's best at f:8 and degenerates if stopped down further.

35mm/f:2.8 PC

Normal

2X - 5X

The corner image degenerates at low magnification. Unsuitable for copying.

35mm/f:2.8 PC

Reverse

3X - 7X

Image is at it's best at f:8 and degenerates if stopped down further.

45mm/f:2.8 GN

Normal

1X - 4X

Image is at it's best from f:8 - f:11 and degenerates if stopped down further than f:11.

45mm/f:2.8 GN

Reverse

2X - 5X

Image is it's at best at f:8 and degenerates if stopped down further.

50mm/f:1.4

Normal

1X - 4X

The more the lens is stopped down, the better the image. Unsuitable for copying.

50mm/f:1.4

Reverse

2X - 5X

Corner image degenerates at low magnification.

50mm/f:2

Normal

1X - 4X

The more the lens is stopped down, the better the image.

50mm/f:2

Reverse

2X - 5X

At high magnification, corner image degenerates when stopped down further than f:8

55mm/f:1.2

Normal

1X - 4X

Stop down as far as possible for better corners. Unsuitable for copying, OK for general.

55mm/f:1.2

Reverse

2X - 5X

Corners degenerate at low magnifications.

55mm/f:3.5 Micro

Normal

1X - 4X

Image is at it's best by f:8 and degenerates as lens is stopped down further.

55mm/f:3.5 Micro

Reverse

2X - 5X

Image is at it's best by f:8 and degenerates as lens is stopped down further.

85mm/f:1.8

Normal

X - 3X

The more the lens is stopped down, the better the image.

85mm/f:1.8

Reverse

X - 3X

Corners degenerate at low magnifications.

105mm/f:2.5

Normal

X - 2X

The more the lens is stopped down, the better the image.

105mm/f:2.5

Reverse

1/inf - 1X

Good image at high magnifications, corners degenerate at infinity.

135mm/f:2.8

Normal

1/3X - 1X

The more the lens is stopped down, the better the image.

135mm/f:2.8

Reverse

1/inf - 1X

Good image at high magnifications, corners degenerate at infinity.

135mm/f:3.5

Normal

1/3X - 1X

The more the lens is stopped down, the better the image.

135mm/f:3.5

Reverse

1/inf - 1X

Good image at high magnifications, corners degenerate at infinity.

105mm/f:4 Bellows

Normal

1/inf - 1X

The more the lens is stopped down, the better the image.

200mm/f:4

Normal

1/5X - 1X

The more the lens is stopped down, the better the image.

300mm/f:4.5

Normal

1/10X - 1X

The more the lens is stopped down, the better the image.

Back to top | Reversing Rings | Extension tubes | Diopters | Stacking Lenses | Home


Diopters (Closeup lenses)

Diopters are perhaps the easiest (portable and convenient) way to get closer with more magnification in the field besides extension tubes, but you may pay a price in picture quality, particularly with the single element diopters. They mount by screwing them into the filter ring of your existing lens and provide magnification through the use of optics that augment the existing optics in your lens. Nikon's diopters come in 2 filter sizes, 52mm and 62mm. Adapter rings can allow fitting these to other size filter threads, but at a risk of vignetting. Typical cost of a diopter is about $33-$43.

The following are Nikon single element diopters.

52mm Close-Up Lens #0 - 0.7 Diopters - Intended for longer focal length lenses (105mm and longer)

52mm Close-Up Lens #1 - 1.5 Diopters - Intended for normal (approx. 50mm) lenses.

52mm Close-Up Lens #2 - 3.0 Diopters - Intended for normal (approx. 50mm) lenses

The following are 2 element diopters, they are for use on lenses with focal lengths between 80mm and 200mm.

52mm Close-Up Lens #3T (1.5 diopter)

52mm Close-Up Lens #4T (2.9 diopter)

62mm Close-Up Lens #5T (1.5 diopter)

62mm Close-Up Lens #6T (2.9 diopter)

Back to top | Reversing Rings | Extension tubes | Bellows | Stacking Lenses | Home


Stacking Lenses (Macro couplers)

Lens stacking has the same effect as using diopter or closeup lenses. A longer focal length lens is mounted on the camera and a shorter focal length lens is reverse mounted to it's filter ring using a lens stacking ring (macro coupler). Macro couplers come in a variety of sizes (52mm to 52mm, 52mm to 58mm, etc.) and at a typical cost of $8-$10, these couplers offer an introduction to macro that is very affordable.

Magnification factor = Focal length of main lens / Focal length of reversed lens

3 Examples

  1. 200mm / 105mm = approx. 2X magnification

  2. 200mm / 50mm = approx. 4X magnification

  3. 200mm / 24mm = approx. 8X magnification

Experimentation with your existing lenses will show what combination gives you the best pairing for your needs, but in general the following applies:

  1. Mount the longer focal lens to the camera, screw in the macro coupler, and then screw the shorter focal lens into the macro coupler.
  2. The shorter the focal length of the reversed lens - the stronger the macro effect (more magnification) and the working distance to the subject becomes shorter. This arrangement is more useful in the home with stationary subjects.
  3. The longer the focal length of the reversed lens - the less the macro effect and the working distance to the subject becomes more workable. This arrangement is more useful in the field than #2 above.
  4. Use of tripod and remote release is recommended wherever possible.
