Recap

You can think of a dictionary as being one of:

• a list of words
  • ArrayList: slow lookup
  • LinkedList: slowest lookup
• a sorted list of words
• a set of words
  • HashSet: fastest lookup
• a sorted set of words
  • TreeSet: fast lookup

Searching a Sorted Collection

It would seem to make sense that searching for an element in a sorted collection would be faster than searching in an unsorted collection.

The basic idea for searching a sorted collection is used by good players of the Price Is Right Clock Game:

Sorting a Collection

There are many algorithms for sorting a collection. One of the simplest sorting algorithms is called selection sort:

// Create a sorted list s
//  from a collection c; c must implement remove

create an empty collection named s
while size of c > 0
  find the smallest element in c
  add the smallest element to the end of s
  remove the smallest element from c

A modified version exists that does not require creating a second list to hold the sorted collection.

Translating to Java 1

// Create a sorted list s
//  from a collection c; c must implement remove
//  assume c is a collection of String

create an empty list named s
while size of c > 0
  find the smallest element in c
  add the smallest element to the end of s
  remove the smallest element from c

      List<String> s = new ArrayList<String>();

Translating to Java 2

create an empty list named s
while size of c > 0
  find the smallest element in c
  add the smallest element to the end of s
  remove the smallest element from c

      List<String> s = new ArrayList<String>();
      for (; c.size() > 0; )   // or while (c.size() > 0)
      {

      }

Translating to Java 3

create an empty list named s
while size of c > 0
  find the smallest element in c
  add the smallest element to the end of s
  remove the smallest element from c

      List<String> s = new ArrayList<String>();
      for (; c.size() > 0; )
      {
         String min = Collections.min(c);
      }

Translating to Java 4

create an empty list named s
while size of c > 0
  find the smallest element in c
  add the smallest element to the end of s
  remove the smallest element from c

      List<String> s = new ArrayList<String>();
      for (; c.size() > 0; )
      {
         String min = Collections.min(c);
         s.add(min);
      }

Translating to Java 5

create an empty list named s
while size of c > 0
  find the smallest element in c
  add the smallest element to the end of s
  remove the smallest element from c

      List<String> s = new ArrayList<String>();
      for (; c.size() > 0; )
      {
         String min = Collections.min(c);
         s.add(min);
         c.remove(min);
      }

Sorting via Procedural Delegation

It is not difficult to implement selection sort, but there is an easier way to sort: delegate to the java.util.Collections utility:

static
<T extends Comparable<? super T>>
void sort(List<T> list)
Sorts the specified list into ascending order, according to the natural ordering of its elements.

To sort our dictionary:

      List<String> dictionary = new ArrayList<String>();
      /*
         read in the dictionary contents here
      */
      Collections.sort(dictionary);

Notice that we don't need to create a second collection to hold the sorted dictionary.

Advantages of Delegation

• simplicity: one line of code versus an entire algorithm
• correctness: Collections.sort was written by professional software engineers who have carefully designed and tested the method. It has been used by millions of clients.
• maintainance: if something wrong is found with Collections.sort, it will be fixed in the next Java release
• performance: Collections.sort is much faster than our home grown selection sort

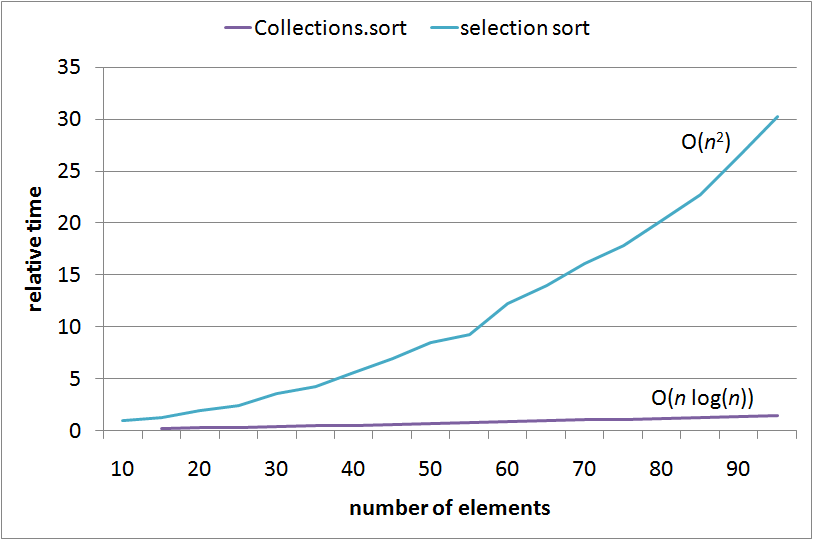

Efficiency of Sort

Searching a Sorted List

If you use contains on a sorted list to look up randomly selected words, you won't see any improvement in performance (an average) because contains makes no assumptions about the order of the elements in the list.

Efficiently searching a sorted list requires a method that can exploit the sorted structure of the list. One such algorithm is binary search.

Binary Search

The algorithm is easy to describe, but tricky to implement:

1. get the middle element of the list
2. if the element is less than the sought for value
      discard the front half of the list
   else if the element is greater than the sought for value
      discard the back half of the list
   else
      done, found the sought for value
3. repeat steps 1 and 2 with the remainder of the list

A Java implementation for arrays of integers can be found here.

It can be shown that the worst-case complexity of binary search is O(log₂n).

Binary Search in Java

Delegation is again your friend (from java.util.Collections):

static <T> int
binarySearch(List<? extends Comparable<? super T>> list, T key)

Searches the specified list for the specified object using the binary search algorithm. The list must be sorted into ascending order according to the natural ordering of its elements (as by the sort(List) method) prior to making this call. If it is not sorted, the results are undefined.
Returns:
the index of the element if it is in the list; a negative value otherwise (see API for details).

      List<String> dictionary = new ArrayList<String>();
      /*
         read in the dictionary contents here
      */
      Collections.sort(dictionary);

      /*
         choose a word to look up here
         String word = ...
      */
      int index = Collections.binarySearch(dictionary, word);

import java.util.*;
import java.io.*;

public class DictionaryBinarySearch
{
   public static void main(String[] args) throws IOException
   {
      PrintStream output = System.out;
      Scanner input = new Scanner(System.in);

      List<String> dictionary = new ArrayList<String>();

      final String DICT_NAME = "dictionary.txt";
      Scanner dictionaryInput = new Scanner(new File(DICT_NAME));

      for (; dictionaryInput.hasNextLine();)
      {
         String word = dictionaryInput.nextLine().trim();
         dictionary.add(word);
      }

      // ArrayList version of the dictionary to pick random words from
      final ArrayList<String> WORDS = new ArrayList<String>(dictionary);

      // random number generator to randomly pick words
      Random rng = new Random();

      // Number of words and test
      output.print("Number of words to look up? ");
      String num = input.next().trim();
      int numWords = Integer.parseInt(num);

      output.print("Number of tests to run? ");
      num = input.next().trim();
      int numTests = Integer.parseInt(num);

      // Average time
      Collections.sort(dictionary);
      long sumTime = 0;

      for (int test = 0; test < numTests; test++)
      {
         long startTime = System.nanoTime();
         for (int i = 0; i < numWords; i++)
         {
            int index = rng.nextInt(WORDS.size());
            String word = WORDS.get(index);
            int idx = Collections.binarySearch(dictionary, word);
         }
         long endTime = System.nanoTime();
         sumTime += endTime - startTime;
      }

      output.printf("Average time : %,.0f", ((sumTime + 0.0) / numTests));
   }
}

Results for Several Collections

• binary search of a sorted ArrayList has similar search efficiency to a sorted set

To Do For Next Lecture

Finish reading Chapter 10.
